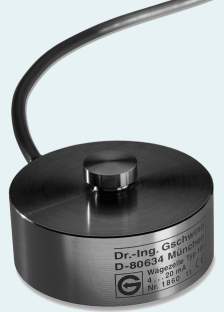

Precision Load cell type 180








Specifications:



Nominal load

0,5, 1, 2, 4, 6, 10, 20 t, (25 t on application)

Nominal span

16 mA

Accuracy

0,2

Temperature
drift of span

0,02%/°C

Temperature
drift of zero
(4 mA)

0,02%/°C

Nominal temperature range:

-10 ... +50°C

Application temperature range

-30 ... +50°C

Supply

14,5 to 30V/70mA
DC without regulation
wrong polarity protection

Output signal

4 - 20 mA
(max. electr. load  200 Ohm)

Applicable load*

1,2-times nominal load

Max. applicable load*

1,5-times nominal load

Break load*

>3-times nominal load

Cable length

25 m (other length available)

Nominal displacement

< 0,1 mm

*Calculated is the sum of dynamic and static load




Precise measuring and dosing in rough applications


Electromechanical weighing and dosing systems use load cells for measuring sensors. The key advantage of our type 180 is the already integrated signal amplifier, which enables an easy and accurate transmission of the signal even for long distance (output signal: regulated current).




More important advantages:



·         High precision

·         True linearity as a key factor

·         Wear out free by absence of  moving parts

·         Overload possible within the  mentioned limits

·         Supply with standard cable

·         Long cable length allowed by  regulated current

·         Parallel connexion  of more load cells possible

·         Stainless steel and waterproof for outdoor use

·         Simple installation

·         Free of maintenance and cleaning

·         Simple combining load cell with analogue or digital indicators

·         Compact size permits optimised mounting structures

·         Power supply without regulation



Installation (Application)



·         Content measuring, Weighing- and Dosing systems

·         Part-, full- and overload measuring device

·         Industrial measuring through platform- or tank weighing systems

·         Especially suited  for supply in aggressive industrial atmosphere



See also datasheet loadcell type 180  (Acrobat Reader, 1.356 KB).
